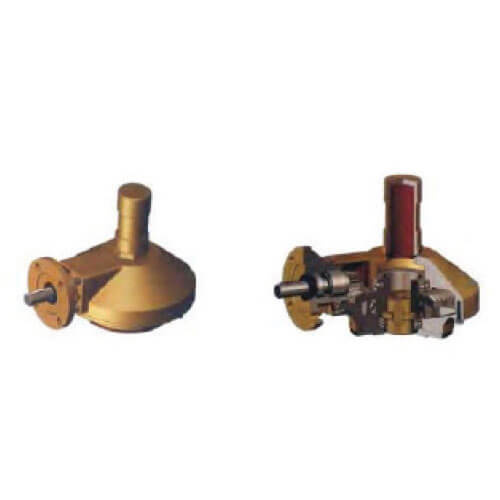

Multi-Turn Gearbox

Features:

  • Complete sealed transmission
  • Gear ratio can be selected for any input ratio, widely used
  • Comply with the IP67 sealing protection level specified by EN60529
  • Reliable operation stability and long-term maintenance free guarantee
  • The movable drive shaft sleeve is flexible and easy to disassemble
  • Built-in grease to improve service life and seal
  • The worm support angle is fully self-locking
  • 0 – 900 mechanical limit
  • Suitable for working environment -400C ~ +1200C
  • Convenient processing and matching connection size
Category:

Description

It adopts the bevel gear transmission mode, also called the bevel gear gearbox. The shape is curved, and it forms a perfect whole with the actuator, and has certain aesthetic effect. The built-in transmission part is coated with efficient and environmentally friendly grease, which effectively improves the mechanical efficiency of the product. No special processing is required to control the valve from the open position to the closed position. The input and output connecting flanges conform to the ISO5211 standard, and the torque range from 400Nm to 25000Nm. Each specification can provide multiple transmission ratio sharing options. It is suitable for gate valves, globe valves, and pressure pipeline valves. It is the best choice for process adjustment and control in petrochemical, electric power, and metallurgy. It can better match the controls units of different specifications.
